切刷一体 中刀滚锯分切 高精度

切刷一体   中刀滚锯分切    高精度

Both cutting and brushing performance. Middle blade roll saw cutting, high accuracy

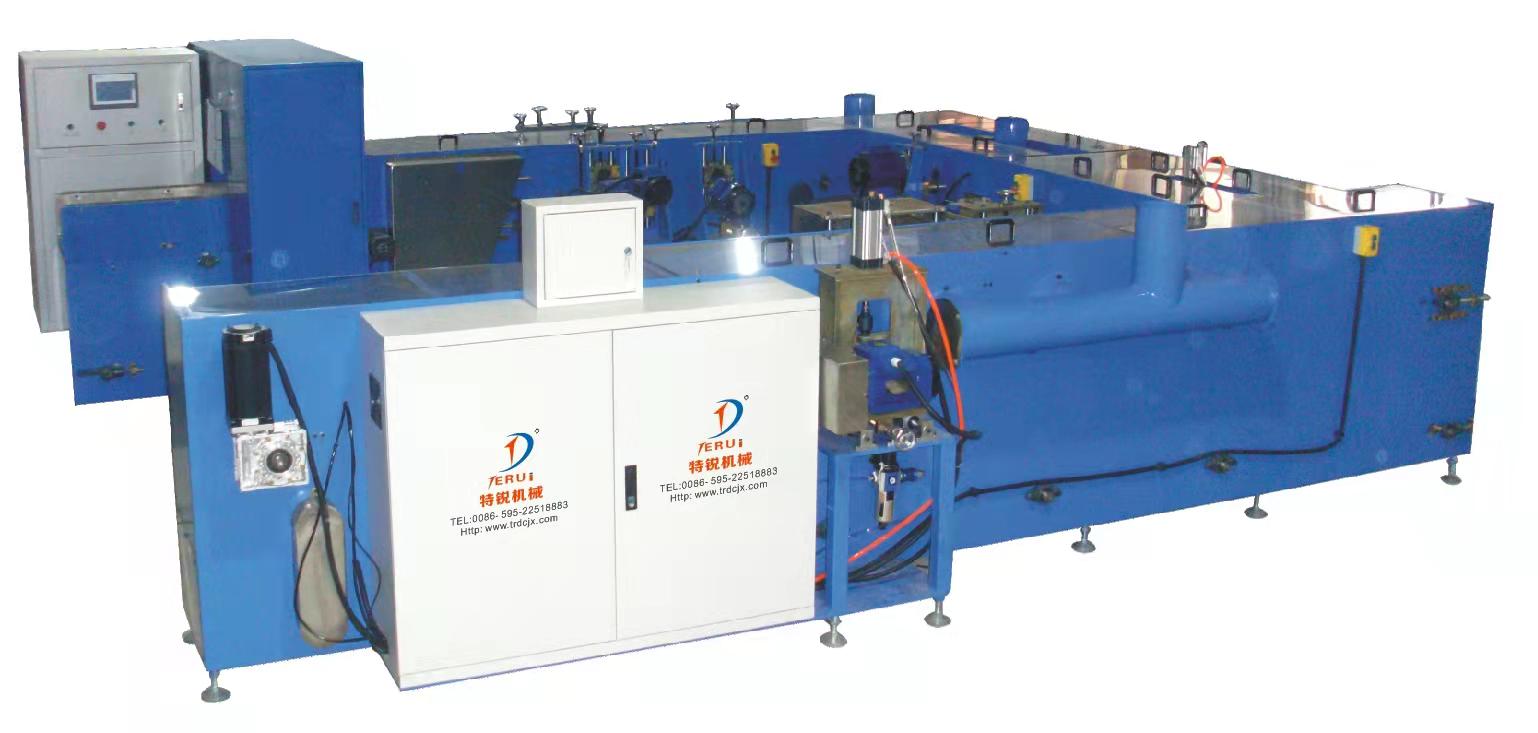

特锐极板分刷一体机是结合我们公司技术优势，专门研发适用铅酸蓄电池大密极板的加工工艺的新设备之一。它自动完成分切刷耳切耳刷边框免人工掰片，本机器具有操作简单维护方便降低人工劳动力等特点，深接广大用户信赖和选用满足行业环保发展的要求。

Terui plate cutting & brushing machine, based on our technology advantage, is the new developed equipment for large VRLA batteries plates production. It can complete plate trimming, lug brushing and frame brushing automatically. With the characteristics of simple operation, easy maintenance and lower labor cost,it is deeply connected with the customers' trust and meeting the requirements of the industry development.

一、技术参数：

Technology parameters

1.      生产效率：65-100大片/min(按板厚4mm计算)

Production efficiency: 65-100 big pcs /min (plate thickness 4mm)

2.      适用极板尺寸：长150-280mm, 宽135-165mm；厚度：≤6mm

Plate Dimension: Length 150-280mm, Width 135-165mm；thickness：≤6mm

3.      整机功率：7.5千瓦

Total Power:7.5Kw

4.      外形尺寸：长6.5米×宽2米×高1.6米

Overall dimension: L6.5*W2*H1.6m.

5.      整机重量：2.2吨

Machine weight:2.2 Tons

二、设备特点：

Machine performance:

1.      采用光电控制，使上片、刷耳、输送、切耳、刷边框及分片连续完成，自动化程度高，节约大量人工；

With photoelectric control, the machine can complete grid feeding, lug brushing, transmission, lug cutting, frame brushing and plate trimming process. High automation and save large labor cost.

2.      极板输送轨道、刷子可调节，适应极板尺寸的变化，修正刷子的磨损；滚刷拆装操作简便。

The plate conveyors and brush can be adjusted accurately to adapts to the plate dimension, correct the wear brush. Easy disassembly of the rolling brush.

3.      采用锯片或滚切方式切耳； 刷边是沿极板缝隙方向刷板；

Use the saw blade or the rolling cutting method to cut the lug. To brush the frame along the plate edge.

4.      极板刷耳切耳、刷边框过程中的机械动作和输送无极板的撞击，有效的防止极板活性物质的脱落和疏松，切耳、刷边框时设备原因所造成废品率低。

No plate collision during the mechanical action of the plate lug brushing, lug cutting and frame brushing, effectively preventing the falling off and loosening of the active materials. Low reject rate due to the equipment during lug cutting and frame brushing.

5.      本机采用密封结构，设备底部和局部配有吸尘接口，以及底部设置铅粉大颗粒集尘斗，方便清扫和整理。符合环保要求，大大节约环保成本；

The machine adopts sealing structure. The bottom and part of the equipment are equipped with dust suction interface. Bottom is equipped with lead powder large particle dust collecting hopper, which is convenient for cleaning and finishing. It conforms to the environmental protection requirements and saves the environmental protection cost greatly.

6.      设备结构合理，采用集中润滑方式，电控箱与整机分离杜绝传统电控箱易进粉尘等特点；

Reasonable structure with centralized lubrication, the electronic control box and the whole machine are separated to prevent the dust flowing into the control cabinet.

7.      操作简单，运行可靠、低耗能。

Simple operation, reliable operation and low energy consumption.
