DT816F法兰倒置桶式蒸汽疏水阀
更新时间:2022-03-03 11:04:17 信息编号:5325259 发布者IP:175.43.64.252 浏览:51次- 供应商
- 上海科谋阀门有限公司 商铺
- 认证
- 资质核验:已通过营业执照认证入驻顺企:第13年主体名称:上海科谋阀门有限公司组织机构代码:310116002345922
- 报价
- 人民币¥2640.00元每台
- 品牌
- CVKM
- 型号
- DT816F
- 产地
- 上海
- 关键词
- DT816F法兰倒置桶式蒸汽疏水阀
- 所在地
- 上海市金山区枫泾镇环东一路65弄3号1605室
- 联系电话
- 86-02134141228
- 手机号
- 13651885415
- 经 理
- 黄 请说明来自顺企网,优惠更多
产品详细介绍
DT816F法兰倒置桶式蒸汽疏水阀

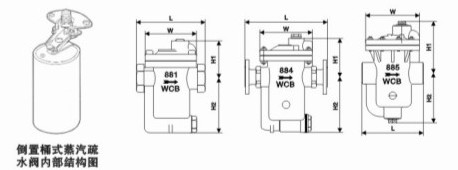

DT 型倒置桶式蒸汽疏水阀 DT inverted bucket steam trap
产品介绍:DT倒置桶型蒸汽疏水阀有特别的杠杆,广泛用于造纸、纺织、食品、石油、化工等工业加热设备的蒸汽管道。
结构特别:1、构造简单,不易故障。无插销或铰链结构,无固定磨损,节能效果佳。耐磨铬钢阀座,不锈钢结构,使用寿命长。
2、间歇排放杂质均可冲走 ,不积污垢,自动排空气。
3、有多种节约流孔选择,在不同压力下,可达到Zui高排水流量。
4、内部零件全安装在阀盖上,维修。
Ntroduction:DT inverted trap has special lever
structures,extensively applied in industries of
petroleum,textile,foodstuff ,paper making,chemical
Industry and steam pipelines
Structure 1 .Simple structure No gemel structctre ,no fixed
abrasiv,excellent abilities to energy .Valve base is made of crome
steel,with long service life.
2. The waste discharged constantly will be washed away,no dirty
remained ,and the air will be automatically discharged .
3.There are many kinds of throttle holes.Uneder different,it can
always realize water amount discharged.
4.The pants are all fixed on the valve cover facilitate
maintence.
型号 |
DT880 |
DT881 |
DT882 |
DT883 |
DT881 |
DT885 |
DT886 |
|
△P.KG/ |
0.5 |
240 |
420 |
800 |
1520 |
2500 |
3960 |
7190 |
1 |
280 |
470 |
930 |
1750 |
2950 |
4500 |
8600 |
|
2 |
230 |
460 |
930 |
1800 |
3020 |
4500 |
8150 |
|
4 |
280 |
410 |
920 |
2000 |
3050 |
4400 |
8800 |
|
8 |
280 |
380 |
800 |
1560 |
2600 |
4600 |
8000 |
|
9 |
310 |
420 |
900 |
1750 |
2950 |
4900 |
8850 |
|
10 |
260 |
365 |
660 |
1500 |
2550 |
4500 |
8450 |
|
12 |
380 |
720 |
1730 |
2880 |
4850 |
9000 |
||
15 |
335 |
560 |
1500 |
2500 |
3000 |
8400 |
||
17 |
350 |
600 |
1550 |
2600 |
3200 |
9650 |
技术参数表 Technological parameter date
